![UNISO 16" Chainsaw Guide Bar and Chain Combo [16"Length, .050"Gauge, 3/8"LP Pitch, 56 DL, 7 Sprocket Nose Tooth] for Echo CS-370, Husqvarna 240, Oregon 160SDEA041 S56 Semi-Chisel](../img/61axzsm7pIL.jpg)
Semi-Chisel · 16-inch
16" Guide Bar + Chain
3/8" LP·.050"·56 DLA 16-inch sprocket-nose guide bar (7-tooth nose, A041 mount) matched with semi-chisel chain, so the bar and chain arrive sized to each other.
| Bar length | 16" |
|---|---|
| Pitch | 3/8" LP |
| Gauge | .050" |
| Drive links | 56 |
| Cutter | Semi-Chisel |
| Nose sprocket | 7 teeth |
| Bar mount | A041 |
| Replaces | Oregon 160SDEA041 bar · S56 (91PX056G) chain |
Pack sizes
- Bar + 1 chain$64.99
- Bar + 2 chains$75.99
- Bar + 3 chains$84.99
- Bar + 4 chains$92.99
- Bar + 5 chains$100.99
- Bar + 6 chains$107.99
Prices in Canadian dollars on Amazon.ca, may change.
Check before you order

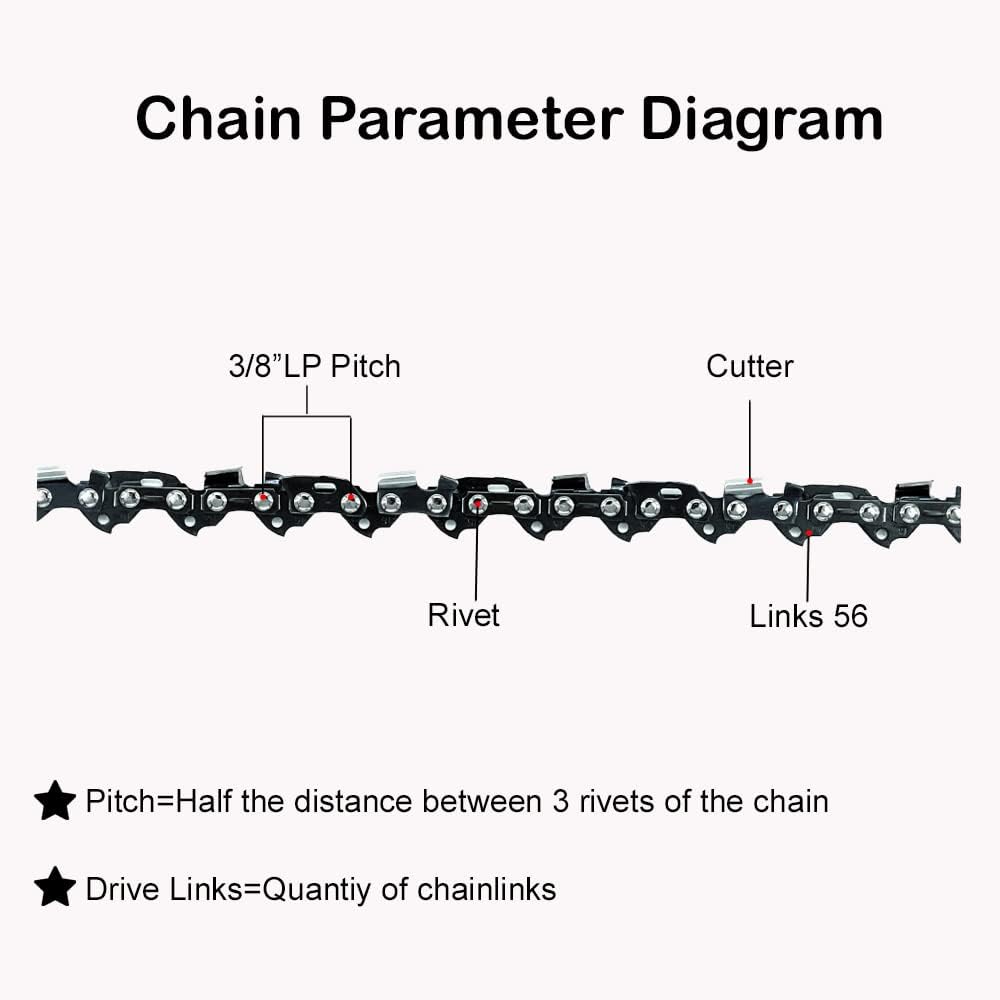

Match the pitch, gauge and drive-link count stamped on your current bar or chain, not just the saw model. The same saw can run different bar lengths, and each length takes a different number of drive links. How to read your bar
Details
Guide Bar

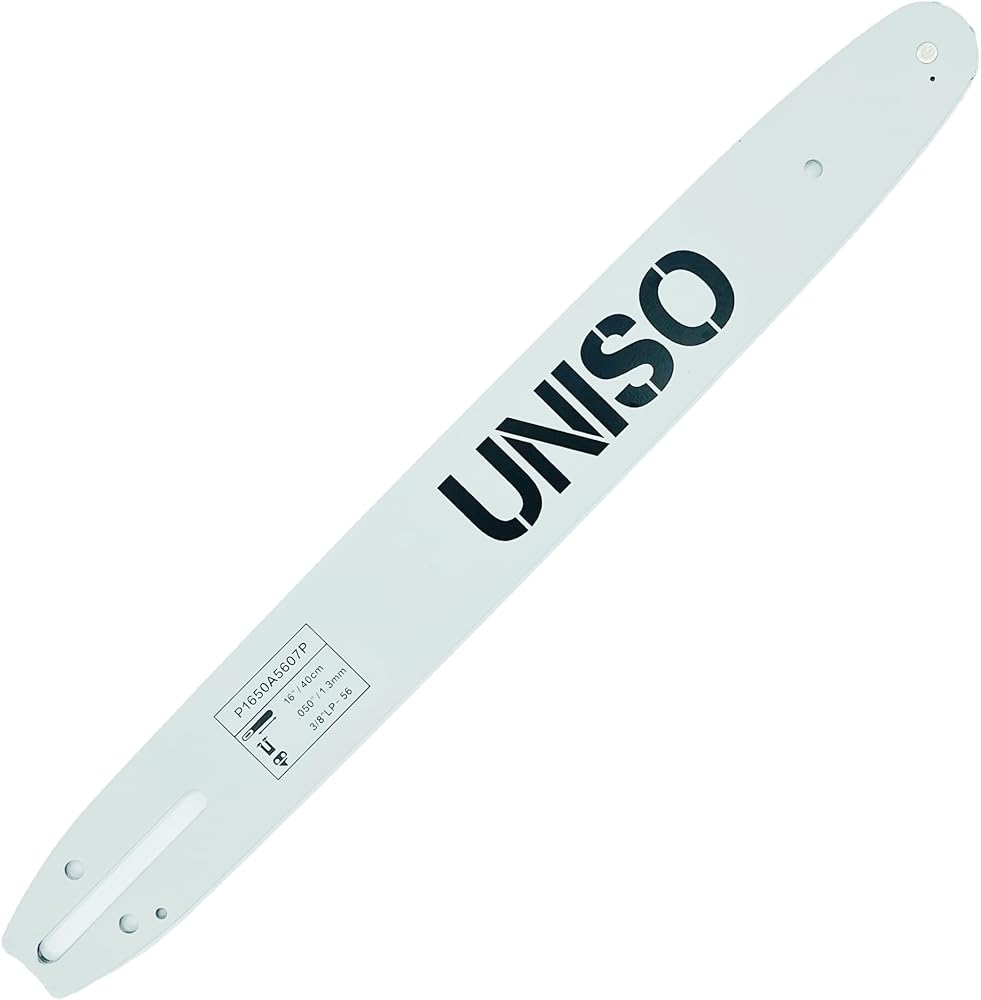

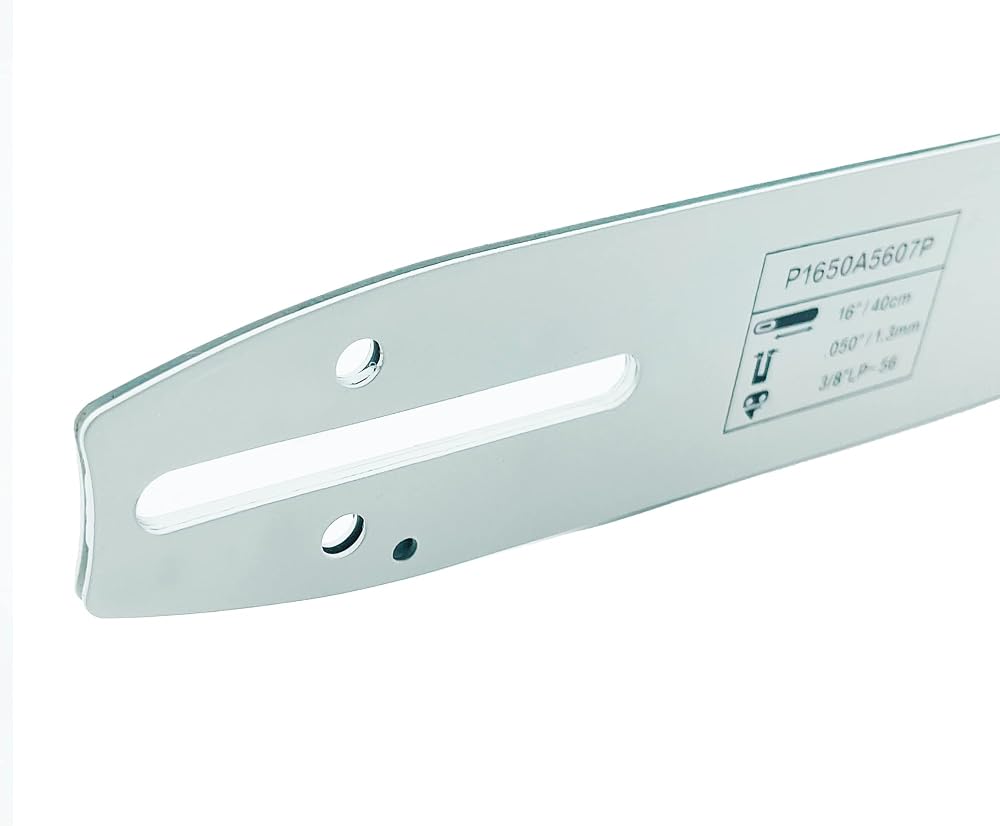

16" sprocket-nose bar, 3/8" low-profile pitch, .050" gauge, 56 drive links, 7-tooth nose sprocket, A041 mount. Replaces Oregon 160SDEA041. Reversible: flip it at each chain change for even rail wear and longer life.
Chain
16" semi-chisel chain, 3/8" low-profile pitch, .050" gauge, 56 drive links. Replaces Oregon S56 (91PX056G). Low-kickback design for light and medium cutting.
Cutters And Build
Semi-chisel cutters stay sharp longer in dirty, dry or frozen wood and are easy to touch up with a 5/32" (4.0 mm) round file. Cutters are hard-chrome plated against wear, rivets are heat treated and quenched for strong link joints, and the chain is made from German-imported alloy steel.
What's Included
One guide bar plus 1 to 6 chains, depending on the size you choose. CHECK BEFORE YOU ORDER: Match the pitch, gauge and drive-link count stamped on your current bar or chain, not just the saw model. The same saw can run different bar lengths, and each length takes a different number of drive links.
Compatible saws
Fits
ECHO CS-271T, CS-280E, CS-290, CS-300, CS-301, CS-302, CS-302S, CS-310, CS-315, CS-330EVL, CS-330T, CS-341, CS-346, CS-352, CS-355T, CS-360T, CS-370, CS-400, CS-3000, CS-3400, CS-3450; Poulan P3314; and other saws that take a 16" A041-mount bar with 56 DL.
